Anti-drone signal jammer WRJ03 internally uses 868/915MHz, GPSL2 1.2 GHz, GPSL1 1.5 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz 6-channel radio frequency interference module, which can effectively interfere with DJI, Phantom, Parrot, Daotong, Skydio and other markets Most drones.

In jamming mode, WRJ03 will force the UAV to land slowly or return home through different operation methods. Widely used in government departments, military, police stations, police systems, etc. People use it to protect air security and prevent drone shooting and attacks.

Product Features:

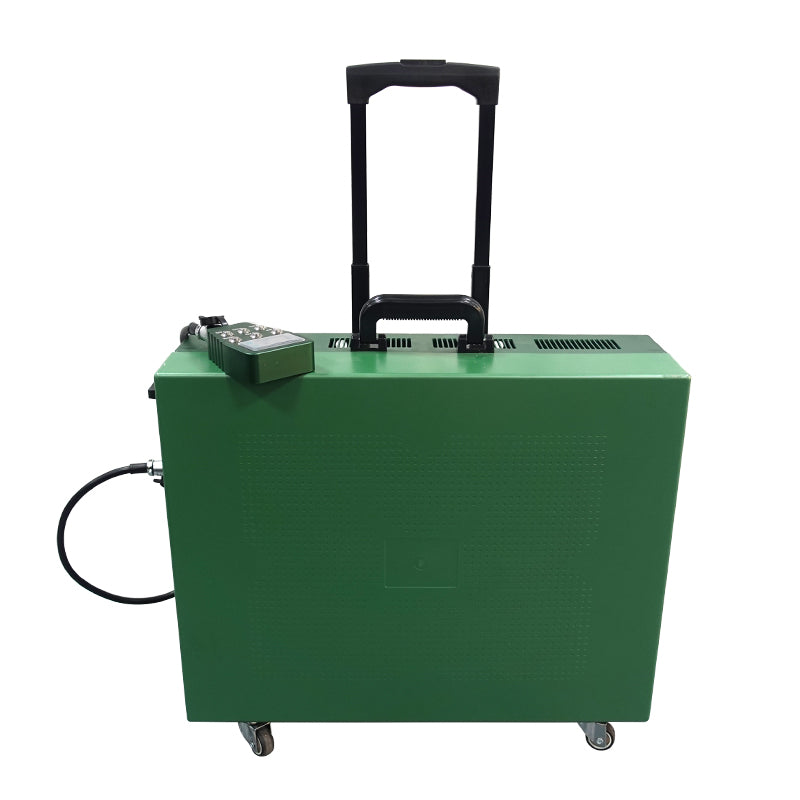

1. The mobile design of the trolley case is adopted, which is convenient for transportation .

2. Durable casing of aluminum alloy and military resin .

3. Large interference range up to 1500 to 3000 meters .

4. The ultra-high output power exceeds 200W, which can quickly interfere with drones .Use the built-in directional antenna in 3 seconds.

5.6 segment frequency interference 868/915, GPSL1, GPSL2WIFI2.4
WIFI5.2G WIFI5.8G; separate control button .

6. IP65 waterproof and dustproof level to resist harsh outdoor working environment .

7. Lithium battery lasts for 1-1.5 hours; over two weekends in standby mode .

Specification:

Size: 50*300*100mm (bracket width is 10cm)

Weight: 13.0KG

Interference frequency:

RC868/915: 850-920 MHz, 1 jammer module

1.2GHz: 1100-1300MHz, 1 jammer module

1.5GHz: 1560-1620 MHz, 1 jammer module

2.4GHz: 2400-2485MHz, 2 jammer modules

5.2GHz: 5150-5350 MHz, 1 jammer module

5.8GHz: 5725-5850MHz, 2 jammer modules

Total output power: about 200W

Large interference range: about 1500-3000 meters

(FH frequency drone is 1000 meters, such as DJI mavic3)

It depends on the real signal environment

Power supply: AC100-240V/DC24V

Charging time: 3-4 hours (built-in lithium battery)

Built-in battery: 24V 40A

Use time: 45-70 minutes

Working temperature: 22°C to +70°C

product operation

1. Before use, please fully charge the built-in battery

2. Press the independent button to start the interference function
(As shown below)

3. Aim at the drone in the sky, the drone will be forced to return or
Immediate slow landing in 3-5 seconds

4. Check the maintained power capacity through the LCD screen buttons

Mode 1 RTH: 2.4Ghz/5.8GHz

Mode 2 RTH: RC868/915/5.2GHz/2.4Ghz/5.8GHz

Mode 3 drone landing/hovering: 2.4 Ghz/5.8 GHz/1.5 GHz (GPSL1)

Mode 4 drone landing/hovering: RC868/915/2.4 Ghz/5.2GHz/5.8 GHz/1.2 GHz (GPSL2)/1.5 GHz (GPSL1)

packing list:

1. Signal jammer (with trolley case design)

2. Power cord

3. AC adapter

maintain:

*The outer casing is durable, breakage-proof, waterproof, dustproof, and corrosion-resistant, making the machine durable and long-lasting

*Please keep a distance of 1-2 meters between the jammer and some electronic equipment products such as audio system, wireless microphone, radio, computer, TV, WiFi router, etc., so as not to interfere with these equipment

*If the jammer works for a long time, the temperature rise is a normal phenomenon
