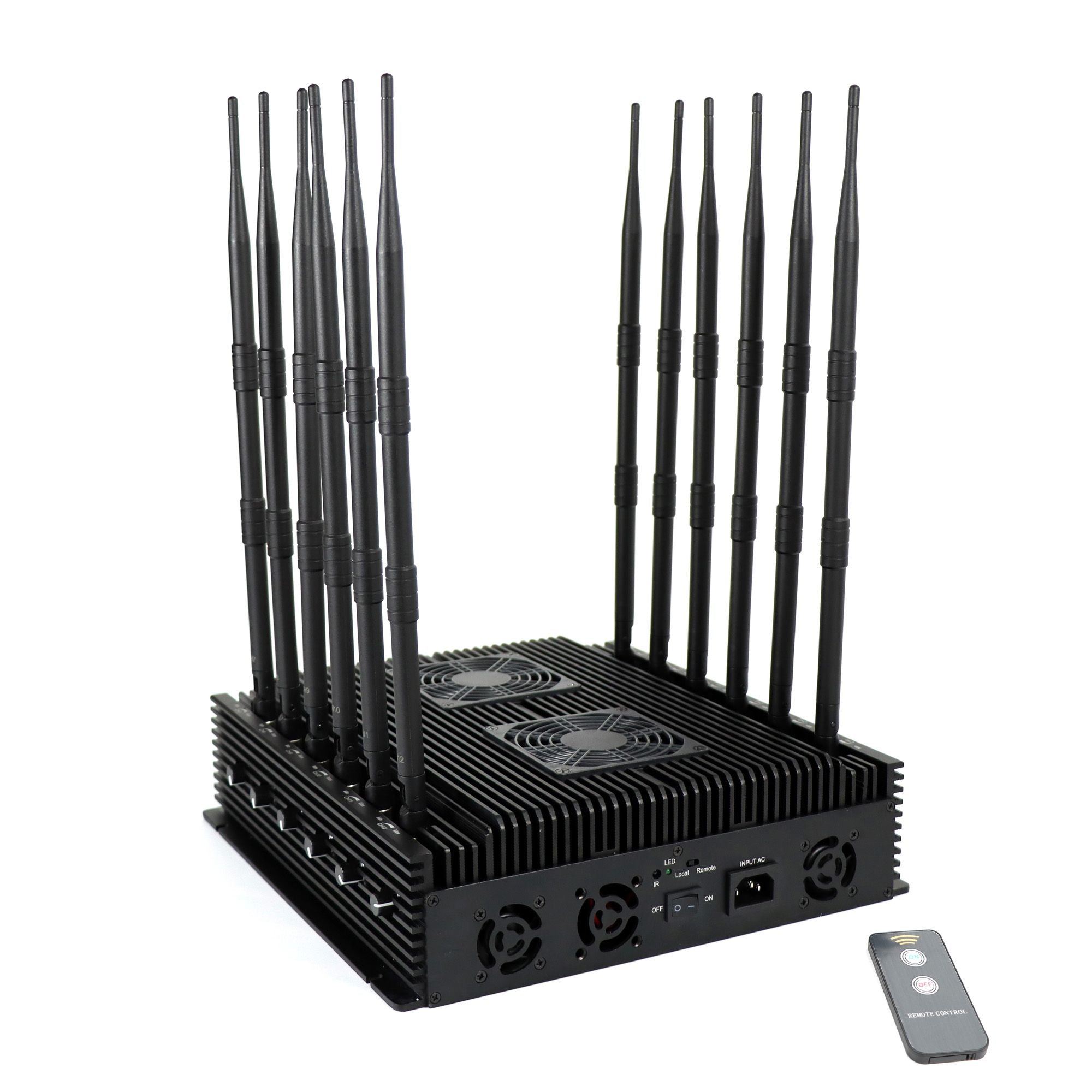

This new powerful mobile phone WIFI GPS 5G signal jammer is designed with 12 antennas, which brings us strong jamming ability. And it can not only cut off all 3G 4G 5G cell phone signals, but also block WiFi GPS LOJACK signals. And with an adjustable 90-watt high power, the device has an interference radius of up to 80 meters depending on the signal strength at the detail. Built-in 6 cooling fans work non-stop. 2-5 meters, with infrared remote control switch power supply.

Features:
*12 channel design, 3-10 watts per band.
* High output power, total power up to: 90W, interference up to 80m (still depends on signal strength in a given area).
*External high gain 2-3dbi omnidirectional antenna, all TX frequencies cover downlink only.
*6 fans built-in good cooling system, work uninterrupted.
*Built-in AC to DC adapter.
*2-5 meters is safer, with infrared remote control to turn on/off power.
*LED indicator shows the working status of each frequency band. The power can be adjusted or any frequency band can be turned off without affecting the operation of other frequency bands. Independent module design, frequency source for each channel, easy maintenance (if the frequency band is damaged, directly replace the new PCB, no need for professional equipment such as frequency analyzer).
*ODM and OEM orders are welcome, you can choose any 12 bands as you want.

interference frequency

4G:
CDMA&868: 851-894MHz
GSM&915&LORA: 900-960MHz
DCS/PCS: 1805-1880/1920-1990MHz
3G: 2110-2180MHz
4GLTE Low: 698-798/738-821MHz
4GLTE High: 2496-2690/2
WIFI2.4G/4G2300: 2400-2485/2300-2485MHz
WIF5.2G+5.8G: 5125-5850MHz
GPS&Glonass L1: 1560-1610MHz
RC433/UHF&CDMA450: 433/400-470MHz
RC315: 315MHz
VHF&LOJACK-175MHz
Options:
4G1700: 1710-1780MHz
GPSL2L3L4L5: 1170-1390MHz

5G:
CDMA/GSM&LORA : 850-960MHz
DCS/PCS : 1805-2000MHz
3G: 2110-2180MHz
4GLTE Low: 698-798MHz
4GLTE High: 2496-2690MHz
5G3.5G/3.7G : 3400-3800MHz
WIFI2.4G/4G2300:2300-2485MHz
WIF5.2G+5.8G: 5125-5850MHz
GPSL1 : 1560-1610MHz
GPSL2L3L4L5: 1170-1390MHz
5G600 : 617-698MHz
VHF&LOJACK: 135-175MHz

Interference radius: 10-80 meters
Power supply: AC110-240V to DC24V
Working hours: non-stop
Total output power: 80-90W in total, 3-10W per frequency band
Device size: 320x 310x 91mm
Equipment weight: 8.0 kg

Package Contents: Interference Host x 1, AC Plug x 1, Antenna x12, Remote Control x1
